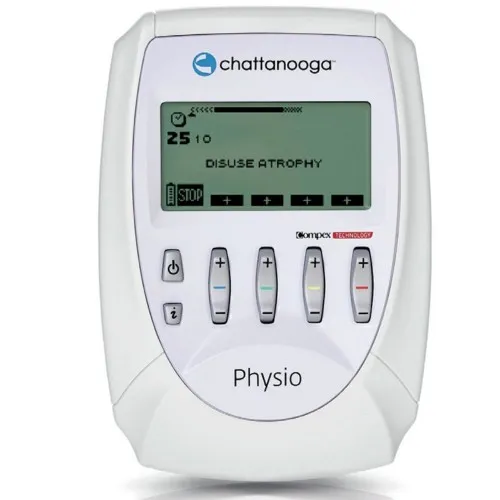

Chattanooga Compex Pro – PHYSIO is a complete 4 channel stimulator developed to manage all indications of Electrotherapy: Standard (TENS/NMES), Full (Neurology, ACL) and Denervated muscles, Iontophoresis, Hyperidrosis, Urology or edema prevention. Optimum programme configuration.

Technical Specifications:

• Channels: Four independent and individually adjustable channels
• Pulse shape: Constant rectangular current with pulse compensation
• Maximum pulse intensity: 120 mA.
• Pulse intensity increments: Manual adjustment of stimulation intensity from 0 to 999 (energy) in minimum increments of 0.25 mA.
• Pulse width: 30 to 400 μs.
• Maximum electrical charge per pulse: 96 micro coulombs (2 × 48 μC, compensated)
• Standard pulse ramp-up time: 3 μs (20 %-80 % of max. current)
• Pulse frequency: 1 to 150 Hz.
• Dimensions: 138 x 95 x 33mm
• Weight: 300g incl. battery
